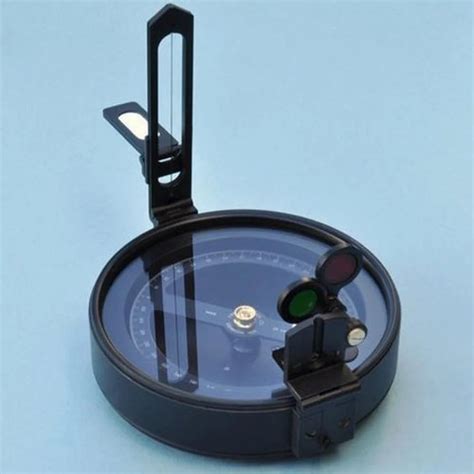

What is a prismatic compass

For ages, people trying to figure out where they're going have relied on tools to measure angles and directions. The prismatic compass is one of those specialized gadgets—built to give you accurate magnetic bearings. Unlike your typical compass with just a needle and a flat dial, this one has a fancy optical system. You can look through it and see both the compass dial and whatever you're pointing at, all at once. That means no parallax error, and your measurements get way more precise. Land surveyors, geographers, foresters, and military folks love it for quick, dependable readings when they're out in the field.

How does a prismatic compass work?

What makes a prismatic compass special is its optical trick. Inside the circular box, you've got a magnetic needle and a graduated ring—that's the dial. There's a little hinged prism sitting over the sighting vane. When you peek through the prism, you see a magnified reflection of the dial right on top of whatever you're looking at. So you can read the bearing without moving your head or losing sight of the target. The prism bends the light so you see the underside of the dial. That simultaneous view is the whole point—it's what makes this compass better than simpler ones.

Key components of a prismatic compass

You gotta know the parts to use it right. Here's what's inside:

• Compass Box: A case made of non-magnetic metal or plastic that keeps the guts safe.
• Magnetic Needle: A magnetized bar that spins freely to point north.
• Graduated Ring (Dial): A circular scale, usually in degrees or mils, attached to the needle—so it moves with it.
• Prism: A triangular bit of glass or plastic that reflects and magnifies the dial reading.
• Object Vane (Sighting Vane): A thin strip with a slit or hairline you use to line up with your target.
• Eye Vane (Prism Housing): The part that holds the prism, with a small hole for looking through.
• Lifting Pin: A mechanism that lifts the needle off its pivot when you close the lid—stops wear and tear.
• Lid: A hinged cover that protects the glass and prism when you're not using it.

What is the difference between a prismatic compass and a surveyor's compass?

Both measure magnetic bearings, but they're built differently. A surveyor's compass is big, usually on a tripod, and uses a vernier scale for super precise readings. You just read the dial directly—no prism. The prismatic compass? It's handheld, way more portable, and uses that prism to read the underside of the dial. Faster to use, sure, but generally less accurate. Great for quick reconnaissance or rough surveys, not so much for final boundary work.

Common applications of a prismatic compass

You'll find this thing in all sorts of places:

• Land Surveying: For traversing, measuring bearings of lines, and making rough maps.
• Forestry: Mapping forest boundaries, finding sample plots, and navigating thick woods.
• Geology: Measuring the strike and dip of rock formations.
• Military: Navigation, orienteering, and even artillery spotting.
• Archaeology: Mapping dig sites and recording where stuff was found.
• Outdoor Recreation: Hiking, backpacking, just plain orienteering.

How to use a prismatic compass for taking a bearing

Taking a bearing isn't science. Here's the drill:

1. Open the lid: Flip it open to about 45 degrees.
2. Hold the compass level: Keep it horizontal in your hand.
3. Sight the target: Look through the prism housing and line up the object vane's slit with your target—like a tree or a hill.
4. Read the bearing: Keep that target in view through the slit, then look through the prism. You'll see a magnified dial. The line that matches up with the hairline or index mark is your magnetic bearing.
5. Record the bearing: Write it down in degrees (say, 45 degrees) or mils.
