How to set a car compass

Getting your car compass dialed in right means you're not just staring at a GPS screen all the time. Lots of newer cars have a digital compass built into the rearview mirror or that little dashboard display, and then there's the aftermarket stuff that needs you to do the calibration yourself. Here's how to get it sorted, with some fixes for when things go sideways.

Why does my car compass need calibration?

So, car compasses use Earth's magnetic field to figure out where you're headed. But here's the thing—metal bits, electrical stuff, and even stuff you've added inside your car can mess with the sensor. Calibration basically resets it to deal with that interference. Most car makers say you should calibrate after you put in new electronics, swap the battery, or drive through areas with weird magnetic fields.

How to calibrate a digital compass in a modern car

Cars with built-in digital compasses usually work about the same way. Check your manual for the specific steps, but here's the general idea:

1. Find a big, empty parking lot—stay away from metal buildings and power lines.
2. Turn the ignition on but don't start the engine.
3. Look for the calibration button or menu. It's often a tiny button near the compass display or a setting in the infotainment system.
4. Press and hold that button until the display shows "CAL" or the direction indicator starts blinking.
5. Drive slowly in a complete circle (360 degrees) at under 5 mph. Some cars want two or three full circles.
6. After the circles, the compass should show a steady direction. That means it's good to go.

How to set a car compass in a rearview mirror

Lots of cars—especially Ford, GM, and Toyota—have the compass built into the auto-dimming rearview mirror. The process is a little different:

1. Press and hold the "COMP" or "MIRROR" button for about 10 seconds until you see "CAL".
2. Drive in a circle like before. You might need to go both directions.
3. Once it's calibrated, the display will show "COMP" or a direction. Test it by driving north to make sure it's right.

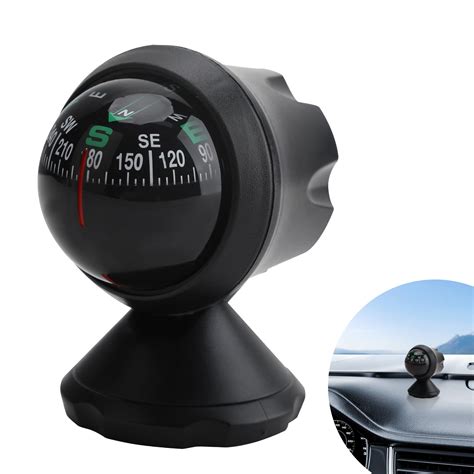

How to set a car compass on an aftermarket unit

Aftermarket compasses vary by brand, but most have a similar routine. For example, a common one might need:

1. Press and hold the "SET" button until the display flashes.
2. Use the "UP" or "DOWN" buttons to set the zone (magnetic declination) for your area. There's usually a map in the manual.
3. Press "SET" again to enter calibration mode. You'll see "CAL".
4. Rotate the vehicle 360 degrees slowly.
5. Press "SET" to save. The compass should now show accurate directions.

People also ask about car compass calibration

Why is my car compass showing the wrong direction?

If the compass is off, it usually just needs recalibration because of magnetic interference. Common culprits are aftermarket electronics (like a dashcam or stereo), a new battery, or driving near big metal structures. Calibrating in an open area usually fixes it. If it's still wrong, check for magnets or metal objects near the sensor.

How often should I calibrate my car compass?

There's no set schedule, but calibrate whenever you notice it's off, after any electrical work, or if you move to a different magnetic zone. Some people do it seasonally or after long trips to keep it accurate.

Can I calibrate a car compass without driving in circles?

Most factory and aftermarket compasses need the circle method because it lets the sensor measure the magnetic field from all angles. Some advanced systems might auto-calibrate while you drive normally, but manual calibration is still best for accuracy. Skip the circles and it might stay wrong.

What is the zone setting on a car compass?

The zone setting adjusts for magnetic declination—that's the difference between magnetic north and true north. It varies by location. For instance, in the western US, it might be 10 degrees east, while in the east, it could be 10 degrees west. Setting the right zone ensures your compass points to true north, not magnetic north. Check a declination map or your manual for the correct number.

Common car compass calibration issues and fixes

Checklist for successful car compass calibration

• Find a large, open area away from metal structures and power lines.
• Remove any magnetic objects from the car, like magnetic phone mounts or compasses.
• Check your owner's manual for the specific calibration procedure for your make and model.
• Set the correct magnetic declination zone if your compass allows it.
• Drive in slow, complete circles (360 degrees) at least twice.
• Test the compass by driving north and checking if the display matches your direction.
• If it's still off, repeat the calibration process.
