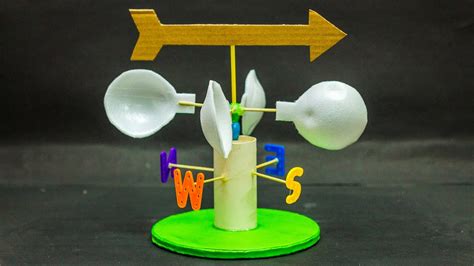

How to make a wind direction indicator

How to make a wind direction indicator

How to make a wind direction indicator

So you wanna build your own wind direction indicator? Or a weather vane, wind vane, whatever you wanna call it. It's honestly one of those projects that feels way more satisfying than it should be. You get to watch local weather patterns, figure out wind flow, and you don't need any fancy gear. I'll walk you through making one that actually works with stuff you probably already have lying around.

What materials do I need to build a wind vane?

You can seriously build this thing with random junk from around the house. The trick is getting a balanced pointer that spins freely on something solid.

  • Pointer (Arrow): Grab something light but stiff - a plastic straw, wooden skewer, or thin balsa wood strip works fine.
  • Tail (Fins): You need something bigger and flat to catch wind. Cardboard, a plastic lid, even corrugated plastic.
  • Pivot Point: A pin, pushpin, or small nail - whatever lets the arrow rotate without sticking.
  • Base and Mast: Something vertical. Wooden dowel, pencil, straight stick - doesn't matter much.
  • Mounting Base: Heavy stuff. Clay pot, large plastic cup filled with sand, wooden block. Whatever won't tip over.
  • Compass Rose (Optional but recommended): Paper or cardboard marked N, S, E, W. Helps actually read the thing.
  • Adhesive: Strong tape, hot glue, or super glue. Just make sure it holds.

How do I assemble the wind direction indicator step-by-step?

Follow these steps and you'll get something reliable. The big deal is balancing the pointer so it spins without friction. That's where most people mess up.

Step 1: Create the pointer and tail

  • Cut a piece of straw or skewer about 20-30 cm long. Not too short, not too long.
  • Cut a tail fin from cardboard or plastic, around 10 cm long and 5 cm wide. Size matters here.
  • Attach the tail fin firmly to one end of the straw with tape or glue. That's the back of the arrow.
  • Make an arrowhead from a small triangle of cardboard or plastic and stick it on the opposite end.

Step 2: Balance the vane

  • Put the assembled pointer on a pencil tip or your finger. Find where it balances perfectly - that sweet spot.
  • Mark that balance point. That's where the pivot pin goes. Don't skip this step.

Step 3: Insert the pivot pin

  • Push a pin or pushpin through the pointer at that exact balance point. Be careful.
  • Make sure the pin is straight and the pointer spins freely around it. If it's crooked, start over.

Step 4: Mount the pivot on the mast

  • Push the pin into the top of the wooden dowel or pencil (the mast).
  • Check the pointer can rotate 360 degrees without hitting the mast. Clearance is everything.

Step 5: Secure the mast and add a compass rose

  • Stick the mast into the heavy base (clay pot filled with sand). Make sure it's vertical and doesn't wobble.
  • Cut a circle of cardboard and draw the four cardinal directions: N, S, E, W.
  • Glue or tape this compass rose to the top of the base, aligning North with true north using a compass or the North Star.

How does a wind v actually work?

The idea is dead simple. The tail fin is bigger, so it catches more wind than the arrowhead. That force pushes the tail away from the wind, making the arrowhead point right into it. So whatever direction the arrow points? That's where the wind is coming from. If it points north, wind's blowing from north to south. Easy.

Common mistakes and how to fix them

Problem Cause Solution
Pointer does not rotate Pivot is too tight or friction is high Use a smaller pin or add a tiny drop of oil to the pivot point.
Pointer is unbalanced Tail or arrowhead is too heavy Trim the materials until the pointer balances perfectly on a finger.
Vane spins wildly Wind is too strong or vane is too light Add a small weight to the base or use heavier materials for the pointer.
Direction readings are wrong Compass rose is not aligned with true north Use a magnetic compass to accurately position the N on your rose.

Expert tips for better accuracy

"For the most accurate readings, mount your wind vane at least 10 feet above the ground and away from trees, buildings, or other obstructions. The wind flow is much smoother and more consistent at higher altitudes, giving you a true reading of the prevailing wind direction." - Dr. Elena Vance, Meteorologist

Frequently asked questions

Can I use a metal coat hanger for the pointer?

Yeah, a straightened coat hanger works great if you want something more durable. But it's heavier, so you'll need a stronger tail fin and a more robust pivot point. And a heavier base so it doesn't tip over. Trade-offs, you know?

How do I know which way is north without a compass?

During the day, sun rises east, sets west. At noon, it's due south in the Northern Hemisphere or due north in the Southern. At night, find the North Star (Polaris) using the Big Dipper. Polaris points directly north. Ancient trick, still works.

What is the difference between a wind vane and an anemometer?

Wind vane measures direction - where the wind's coming from. Anemometer measures speed - how fast it's blowing. They're often used together in weather stations but do completely different things. Don't confuse them.

Why does my wind vane always point the same way?

If it always points one direction even on calm days, it's probably stuck from friction or unbalanced. Check the pivot point for rust or debris. Also make sure the pointer is perfectly balanced horizontally. Even a tiny imbalance will make it settle in one spot every time. Annoying, but fixable.

Checklist for a successful build

  • Pointer is lightweight and rigid.
  • Tail fin is significantly larger than the arrowhead.
  • Pointer is balanced exactly at the center.
  • Pivot pin is straight and allows free rotation.
  • Mast is vertical and securely mounted.
  • Base is heavy enough to prevent tipping.
  • Compass rose is accurately aligned with true north.
  • Vane is placed in an open area away from obstacles.
